Features of HSNFA-1
1. It can handle products with high viscosity.
2. The BIB bag size range from 1L to 25L with a 1-inch spout.
3. The whole equipment is made of stainless steel SUS304, all the surface contacting products are manufactured in stainless steel 316L, other components, such as Rubber, glass, …..are made in sanitary materials approved in food industrial applications, all materials are FDA approved.
4. The machine is designed with safety devices that can protect the operator is accidentally injured by a machine while working.
5. The machine adopts a high-quality Electromagnetic flow meter which ensures high filling accuracy over 10 years.
6. It is easy to operate it through Siemens PLC control man-machine interface.
7. Multi languages apply to people from all over the world.
8. High hygiene level by CIP automatic cleaning system.
9. Nitrogen supply and vacuuming function are always available.
10. The dripping problem can effectively reduce because of new technology
|

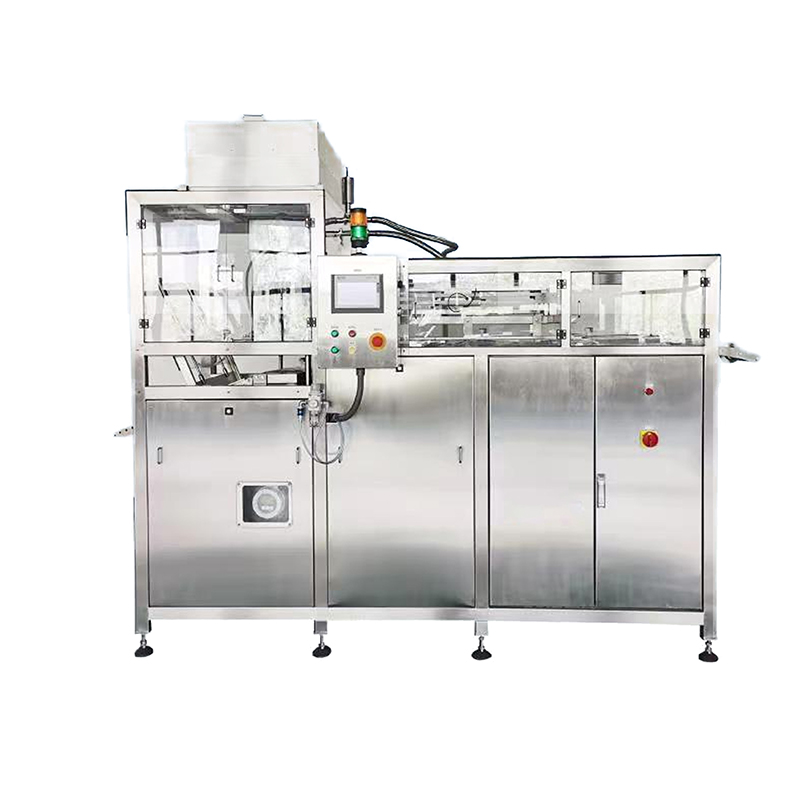

Product images
|
|
|
|
|
|
Aseptic
|
Aseptic Filler
|
Aseptic Filler
|
Non-Aseptic Filler
|
Non-Aseptic Filler
|
|
Model
|
HSAFA-1
|
HSAF-1
|
HSNFA-1
|
HSNF-1
|
|
Operation mode
|
Automatic
|
Semi-Automatic
|
Automatic
|
Semi-Automatic
|
|
Number of heads
|
1
|
1
|
1
|
1
|
|
Filling volume
|
3-25L (1" version only)
|
1-25L (1" version only)
|
3-25L (1" version only)
|
1-25L (1" version only)
|
|
Equipment materials
|
stainless steel SUS304
FDA approved
|
stainless steel SUS304
FDA approved
|
stainless steel SUS304
FDA approved
|
stainless steel SUS304
FDA approved
|
|
Filling meter
|
electromagnetic flow meter
|
electromagnetic flow meter
|
electromagnetic flow meter
|
electromagnetic flow meter
|
|
Operation interface
|
Siemens PLC
|
Siemens PLC
|
Siemens PLC
|
Siemens PLC
|
|
Languages
|
Multi languages
|
Multi languages
|
Multi languages
|
Multi languages
|
|
Cleaning system
|
CIP automatic
|
CIP automatic
|
CIP automatic
|
CIP automatic
|
|
Food steam
|
6~8bar 60kg/h
|
5~8bar 18kg/h
|
/
|
/
|
|
Filling accuracy
|
± 0.5%
|
± 0.5%
|
± 0.5%
|
± 0.5%
|
|
Power
|
220V AC 50HZ 1.5KW
|
220V AC 50HZ 0.5KW
|
220V AC 50HZ 1.5KW
|
220V AC 50HZ 0.5KW
|
|
Compressed air
|
6－8bar 60KG/H
|
6－8bar 16NL/min
|
6~8bar 30NL/min
|
6~8bar 10NL/min
|
|
Nitrogen supply pressure
|
/
|
/
|
Max2.5bar
|
Max2.5bar
|
